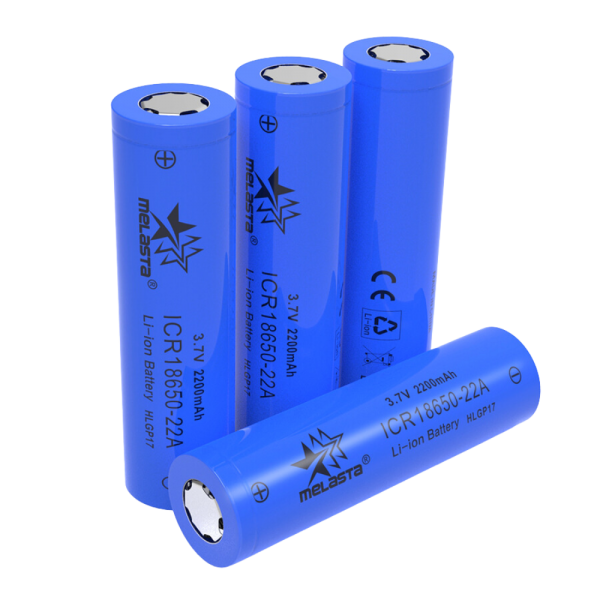

Lithium-Ion (Li Ion) Cells

Voltage :
3.7V
Capacity :
Upto 6000mAh
Discharge rate :
1C~15C.
Chemistry :
LiCoO2, NCM, LiMnO2

Product Advantages

Unlocking Superior Benefits Lithium-Ion (Li Ion) Cells
Extended Cycles
Achieves over 500 cycles with 80% capacity retention.
Chemistry Options
Variants include LiCoO2, NCM, and LiMnO2 chemistries.
Flexible Discharge
Supports a wide discharge rate from 1C to 15C.
High Density
Achieves 270 Wh/kg density for single-cell efficiency (NCM).
Size Variety
Available in 18500, 18650, 26650, 32650, 21700 sizes.
Cold Resilience
Operational in low temperatures down to -40℃

High Discharge Rate

Designed to provide substantial power output, these batteries are ideal for applications requiring quick bursts of energy, supporting everything from electric vehicles to high-power tools.

Low Self-Discharge

These batteries are engineered to retain their charge for extended periods when not in use, making them perfect for emergency backups and seasonal use applications where frequent recharging is not feasible.

High Reliability

Constructed to deliver consistent and dependable performance across a wide range of operating conditions, ensuring reliability for critical applications in medical devices and safety equipment.

High Energy Density

Melasta batteries are known for their high energy density, providing a significant amount of power per unit weight, which is essential for portable devices that require long-lasting energy without the bulk.

High Capacity

These batteries are capable of holding a large amount of energy, which translates to longer operational times between charges, especially beneficial for consumer electronics and electric vehicles.

Low Impedance and Heat Generation

With specially designed internal components that reduce electrical resistance, these batteries operate cooler and more efficiently, minimizing the risk of overheating and energy loss during high-load operations.

Examine the detailed graphs for the Model MB-ICR18650 Lithium Ion (Li-Ion) Battery, rated at 3.7 V and 2600mAh, under specified conditions.

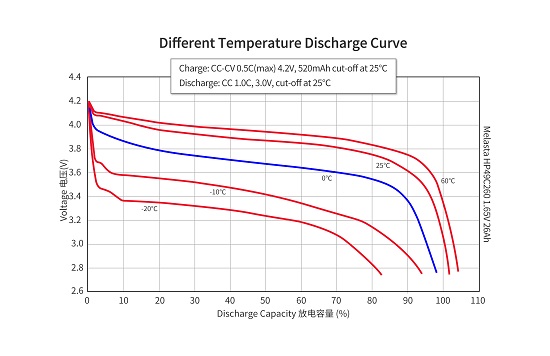

01.Different Temperature Discharge Curve
Charge: CC-CV 0.5C(max) 4.2V, 520mAh cut-off at 25℃ Discharge: CC 1.0C, 3.0V, cut-off at 25℃

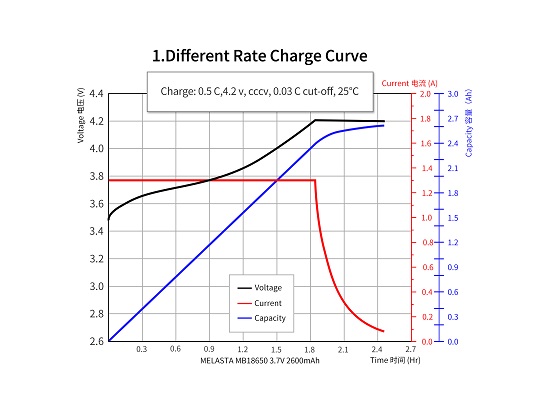

02.Different Rate Charge Curve
Charge: CC-CV 0.5C(max) 4.2V, Cut-off at 25℃
03.Different Rate Discharge Curve
Charge: CC-CV 0.5C, 4.2V 0.03C, Cut-off at 25℃ Discharge: CC-CV, 2.75V Cut-off at 25℃

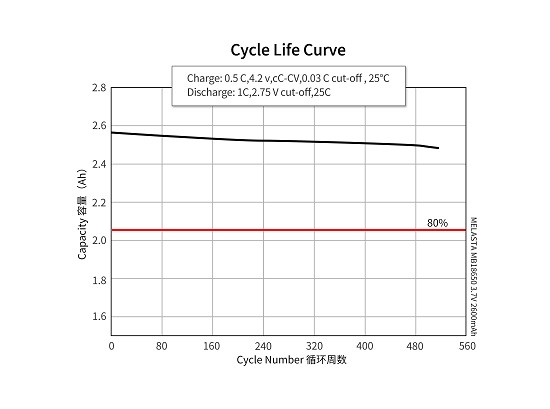

04.Cycle Life Curve Charge: CC-CV 0.5C(max) 4.2V, cut-off at 25℃ Discharge: CC 1C, 2.75V, cut-off at 25℃
